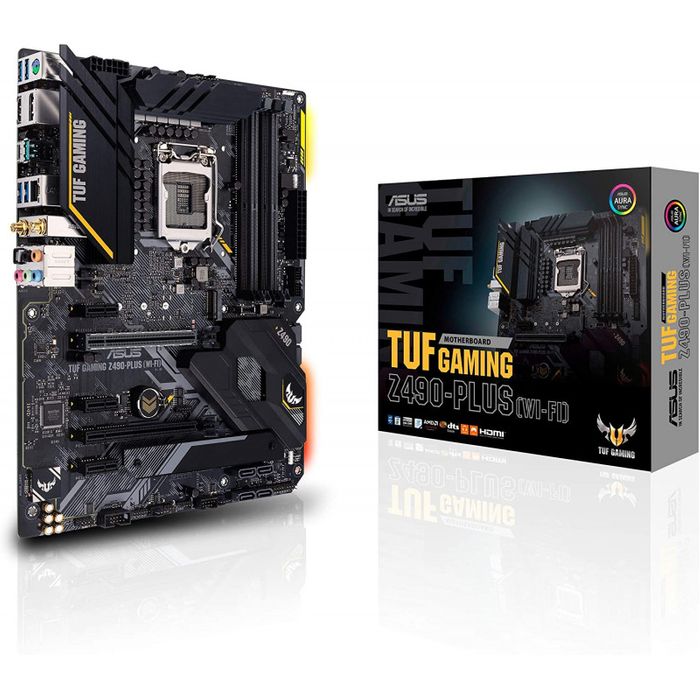

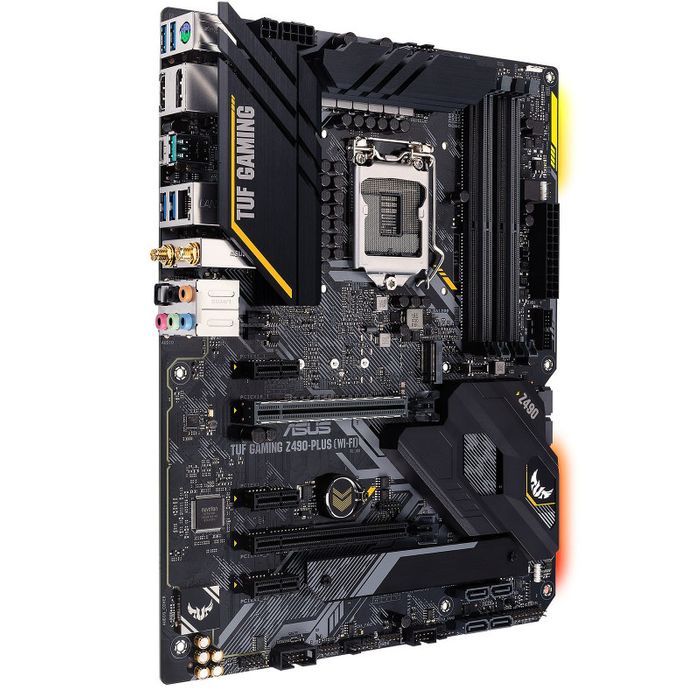

ASUS TUF GAMING Z490-PLUS WIFI

ASUS TUF GAMING Z490-PLUS WIFI - ATX - Socket Intel 1200 -

Chipset : Intel Z490 Express - 4x DDR4 - SATA 6 Gb/s + M.2 PCI-E NVMe - USB 3.1

- 2x PCI-Express 3.0 16x - Garantie 2 ans

Fiche Produit:

ASUS TUF GAMING Z490-PLUS (WI-FI)

Processeur:

Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset:

Intel® Z490Mémoire4 x DIMM, Max. 128GB, DDR4

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Multi-GPU : Supports AMD 2-Way CrossFireX Technology

StockageTotal :

supports 2 x M.2 slots et 6 x SATA 6Gb/s ports

Intel® Z490 Chipset :

1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

6 x SATA 6Gb/s port(s)

Support Raid 0, 1, 5, 10

Intel® Rapid Storage Technology supports

Intel® Optane™ Memory ReadyRéseauIntel® I219-V 1Gb Ethernet

TUF LANGuardRéseau Sans-FilIntel® Wi-Fi 6 AX201

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

Supports up to 2.4Gbps max data rate

Supports dual band frequency 2.4/5 GHz

Supports channel bandwidth: HT20/HT40/HT80/HT160

Supports CNVI interfaceBluetoothBluetooth v5.1AudioRealtek® ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Optical S/PDIF out port(s) at back panel

- Audio cover

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitorsPorts USBRear USB Port ( Total 6 )

2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C®)

4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

Front USB Port ( Total 7 )

1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C®)

1 x USB 3.2 Gen 1 port(s)(2 x Type-A)

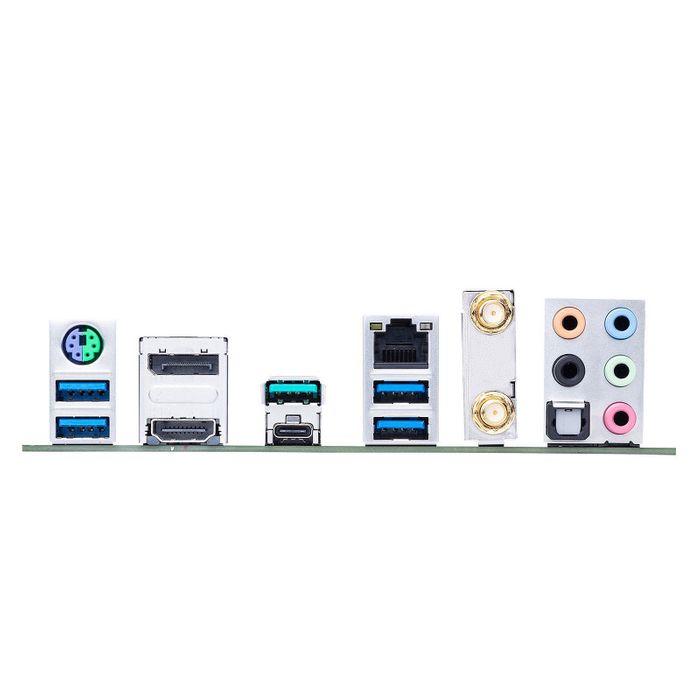

2 x USB 2.0 port(s)(4 x Type-A)Interface E/S Arrière1 x PS/2 keyboard/mouse combo port(s)

1 x DisplayPort

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)

4 x USB 3.2 Gen 1 (blue) Type-A

1 x Optical S/PDIF out

5 x Audio jack(s)Interface E/S Interne1 x CPU Fan connector(s)

1 x CPU OPT Fan connector(s)

3 x Chassis Fan connector(s)

1 x AIO_PUMP connector

2 x Aura RGB Strip Headers

1 x Addressable Gen 2 header(s)

1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3

6 x SATA 6Gb/s connector(s)

1 x Thunderbolt header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s) (Chassis intrusion header is inbuilt)

1 x Clear CMOS jumper(s)

1 x COM port headerSystème d'exploitattionWindows® 10 64-bitFormatATX Form Factor ( 30.5 cm x 24.4 cm )
